LED Line Speed Indicator                                                    Approx  $300.00 per Digit

FEATURES:

• Extremely useful in industrial production applications for measuring line speed / linear production totals

• Large, easy to read 1" to 5"  Digital LED's (designed for overhead mounting)

• Compatible with analog or digital systems

• Available in single or double faced configurations

• RS232 Output

• Potential for connection to remote workstation for monitoring

• Customizable # of Digits

• DIN Rail Mounted
• Recognizes a variety of switches (proximity, limit switches, etc.)
• Converts PNP or NPN input signals into separated NPN or PNP output signals, respectively
• Can be used as a Pulse Amplifier
• 2 Independent Outputs, 1 Independent Input
• "ON" LED Indication

FEATURES:

• +/- Voltage Input convertible to specific Voltage output
• Fully Scaleable
• Isolated Inputs by Transconductance

• Bi-directional (+/- 10V)
• Micro Controlled
• Isolated output
• Fully Scaleable

• Three Independent alarms for status monitoring
• Battery backup
• Normally Open or Normally Closed Sensor support
• LED and Sound alarm indication
• Piezoelectric sounder

• 2 Isolated Outputs - 1 Internally scaled,  w/1:1 scale, Optional daughter zero calibration
• 120VAC Input

•
• Optional RS-232 Output

• +24VDC Power Supply
• Compatible with Quadature Output Encoder

    PNP/NPN

     Power Supply:                                                                                                                         +24V +/- 4V

    Current Consumption:                                                                                                              max. 10m

    Wrong Polarity Protection:                                                                                                       Yes                                                                .

    Inactive Input (open input) Voltage:                                                                                          approx. 12V

    Input Impedance:                                                                                                                     10K Ohms.                               .

    Input NPN Threshold:                                                                                                               5V

    Input PNP Threshold:                                                                                                               20V…                                                             .

    Output Type:                                                                                                                            open collectors

    Max Output Current:                                                                                                                100 mV                                                           .

    Max Output Voltage (NPN output):                                                                                           40V

    Max Output Voltage (PNP output):                                                                                            Power Voltage (apprx.)          .

    Max Frequency:                                                                                                                       100 KHz

    DC Injector

    I/O:                                                                                                                                          Onboard; Programmable to user specification .

    Led indication:                                                                                                                        Alarms, Standby Status, OK

    Inputs:                                                                                                                                     240 to 600VAC                                                 .

    Brake Time:                                                                                                                            Fully Adjustable

    Control input:                                                                                                                         120VAC                                                            .

    Voltage to Voltage Converter

    Input Voltages:                                                                                                              +/- 600V, 180V, 24V (50mV by moving onboard jumper)

    Zero Output Adjustment:                                                                                                        Yes

    Power Requirements:                                                                                                             120 VAC                                                              .

    Isolated Output Voltage:                                                                                                         0-+/-10V

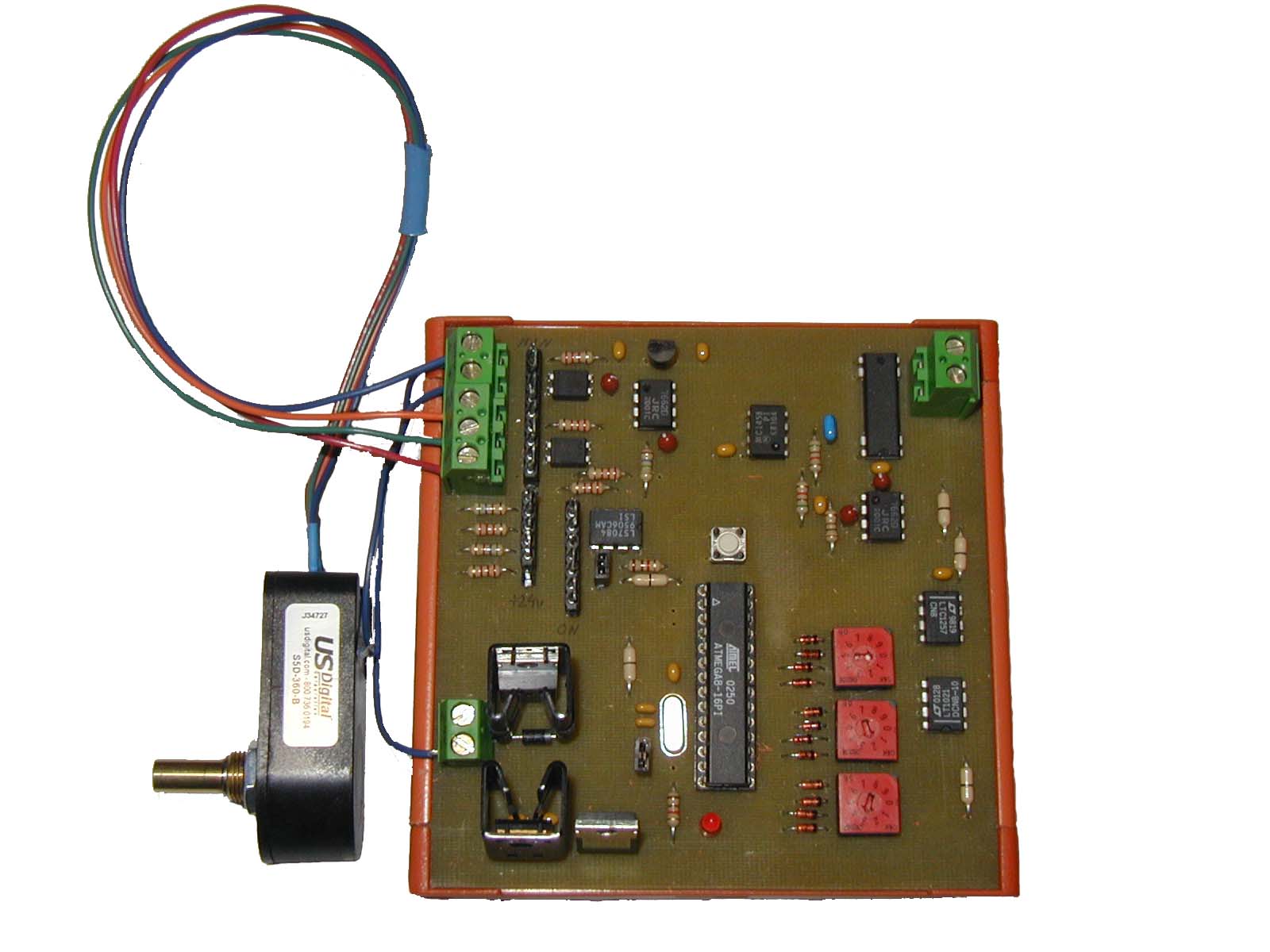

     Voltage to Frequency Converter

    Encoder Compatibility:                                                                                                          Single-ended or Quadature                                 .

    Scaleable Input:                                                                                                                     Yes

    Isolated Output:                                                                                                                      Yes                                                                     .

    Bi-directional:                                                                                                                        Yes (+/- 10V)
